Product Highlights:

  • For lifting height up to 52”
  • 750lbs weight capacity
  • Adjacent access to accommodate a wheelchair turning
  • ASME 18.1 compliant
Product Overview

Product Overview

Install Freedom Wheelchair Platform lifts into commercial businesses or public buildings to meet accessibility standard codes. Designed with precision to be the safest, most durable commercial wheelchair platform lifts available, Freedom Lift systems are the perfect solution to your accessibility needs.

We Install Each Wheelchair Lift to Your Requirements

Installing wheelchair lifts into a business or organization’s building shouldn’t be complicated. With a small footprint and easy installation, your building can be fully accessible to all people in no time. Our Outdoor platform lifts are made with a sturdy, durable weather resistant design that requires minimal yearly maintenance.

Our commercial wheelchair platform lift meets ASME 18.1 code requirements, but many communities also have state or local accessibility codes enforced by local building inspectors. If you let us know those requirements, we can usually accommodate your specific needs.


  • Maximum lifting height 52” (adjustable to actual landing height)
  • Tower located on the right at lower access
  • Adjacent access to accommodate a wheelchair turning to get off the lift
  • 750lbs weight capacity
  • 8 feet/minute lift speed
  • Constant pressure Soft Touch control pads for easy operation
  • 42" x 54" Solid platform and under platform safety plates
  • 18” extra wide positive action folding toe plate for universal access
  • Emergency alarm and light package
  • 42” high solid handrail wall
  • Carriage gate
  • 42" high x 42" wide upper landing gate
  • Auto door opener for upper landing
  • Auto door opener for lower landing
  • Electrical/Mechanical interlocks
  • Keyed toggle remote call stations, upper and lower
  • Zero load start for cold weather climates
  • Sturdy and durable weather resistant design
  • Fuse box and mechanics easily accessible from top or carriage side
  • Smooth and quiet performance
  • ASME 18.1 compliant UL AND CSA certified


  • Upgrade to DC Power battery back up
  • Color upgrade to all black
  • Commercial packages available for New York compliance

IMPORTANT NOTE: It is the CUSTOMERS responsibility to assure compliance with relevant building code and regulatory requirements. Read our Frequently Asked Questions about code commercial lifts here: https://www.freedomliftsystems.com/code-compliance


Product Specification Sheet (PDF) 14/07/2018 262.45KB
Dimension drawing (PDF) 14/07/2018 148.17KB
Installation (PDF) 14/07/2018 5.89MB
Lift Owners Manual 14/07/2018 494.24KB
Lift Maintenance Manual 14/07/2018 489.25KB

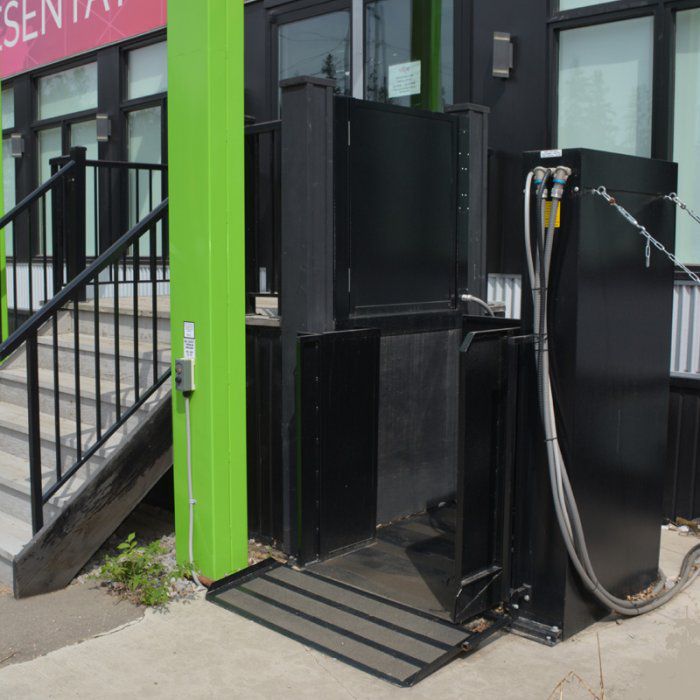

Exterior Wheelchair Platform Lift

The commercial vertical platform lifts are designed for use in schools, offices, churches and other public buildings.
