53" Adjacent Freedom Easy Ride II Commercial Vertical Platform Lifts - Left Tower

53" Adjacent Freedom Easy Ride II Commercial Vertical Platform Lifts - Left Tower

Made in USA
Model: APFVPLC400ADJLAL

US$18,880.00 US$13,865.00

Save 27%

Model: APFVPLC400ADJLAL

5 to 6 weeks manufacturing time
5 to 6 weeks manufacturing time
Customize and Add To Cart
5 to 6 weeks manufacturing time

Product Highlights:

  • Lifting height up to 53”
  • Weight capacity 750lbs

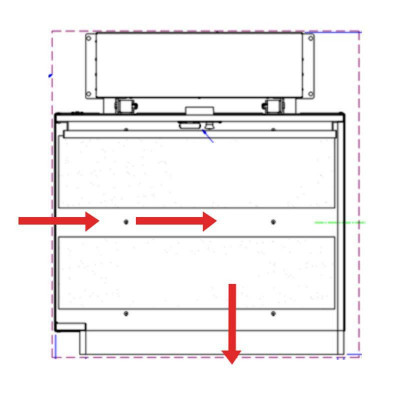

  • 90 Degree platform, Left tower
  • Meets ASME STD A18.1
Product Overview

Product Overview

UPDATED DESIGN. The 53” Easy Ride II Commercial Wheelchair Platform Lift can be installed in commercial and public buildings to meet ADA and accessibility standard codes.Businesses looking for exterior wheelchair platform lifts will find the Easy Ride lifts have a sturdy, durable weather resistant design.

Meet Building Standards With a Freedom Wheelchair Platform Lift

For affordable solutions to accessibility, our commercial wheelchair platform lifts are user friendly and easy to install and maintain thanks to the NEW Guardian Light System. Four LED lights at the top of the control tower, help you trouble shoot issues and know when maintenance is needed.

Our commercial wheelchair lifts meet ADA and ASME 18.1 code requirements, but many communities also have State or local accessibility codes enforced by local building inspectors. If you let us know what those additional features and requirements are, we can usually accommodate your specific needs.

Features:

  • NEW light weight rounded tower cover
  • NEW Guardian LED Light System
  • 90 Degree Adjacent plaftform
  • Tower located on the left at lower access
  • Maximum lifting height 53”
  • Weight capacity 750lbs
  • Constant Pressure Paddle Switch with Emergency Stop
  • 1" ACME screw drive
  • Top-mounted motor and electrical box makes servicing easy and eliminates potential water issues
  • Platform is 42" x 60" with 42" solid guard panels and grab rail
  • Solid plaftform with safety pan
  • Auto folding ramp
  • Platform Gate with EMI Interlock on entrance side
  • Upper landing gate with EMI interlock
  • Keyed Call/Send Controls for upper and lower landing
  • Oyster White
  • SealKore Exterior Grade Powder Coat prevents rusting
  • Speed: 10 feet/minute
  • Warranty 3-Year parts
  • Made in the USA

Safety Design Standards:

  • meets ASME STD A18.1 / ASME STD A17.5 / Certified to CAN/CSA STD B44.1 / ETL
  • Safety pan; Final limit, ball nut safety backup, belt monitor and non-skid surface
  • Emergency stop and light package

Options:

  • Upgrade to Battery Backup

IMPORTANT NOTE: It is the CUSTOMERS responsibility to assure compliance with relevant building code and regulatory requirements. Read our Frequently Asked Questions about code commercial lifts here: https://www.freedomliftsystems.com/code-compliance

Downloads

Product Specification (PDF) 12/03/2021 1.29MB
Installation (PDF) 12/03/2021 4.29MB
Owners Manual (PDF) 12/03/2021 2.11MB
